風選+重力清選機 Air separation + gravity cleaner
該機由提升機、垂直風篩、旋風除塵系統、振動分級篩等組成??扇コ覊m、糠、殼等輕雜質。它還可以去除枯萎的種子、發芽的種子、被蟲害的種子、腐爛的種子、變質的種子、發霉的種子、不能存活的種子、有病的黑色粉末的種子。大、小雜質去除后,成品可分為最佳、中、小顆粒。
特點:
1、經過風選、篩選,減輕重力選的工作負荷,進一步提高產量、質量。
2、加工小麥、水稻、玉米、大豆、高粱等商品糧,生產率可達20t/h,可去除糧食中98%以上的輕雜質。
3、設有旋風除塵或布袋除塵,且無大量粉塵泄漏,環保衛生。
4、進料方式:電梯、螺旋輸送機、帶式輸送機,(任選)Advantages(優勢)
Model 型號 | Purity (%) 凈度 | Screen surface size (mm) 篩面尺寸 | Gravity vibration frequency (Times/ minute) 重力振動頻率 | Gravity vibration amplitude(mm) 重力振幅 | Cleanliness 凈度(%) | Power (kw) 功率 | Capacity (t/h) 產量 | Weight (t) 自重量 | Overall size L×W×H(mm) 外型尺寸 |
5XSC-15 | ≥98 | 1700×1600 | 375 | 20 | ≥98 | 12.0 | ≥15 | ≥2.2 | 4450×2400×3740 |

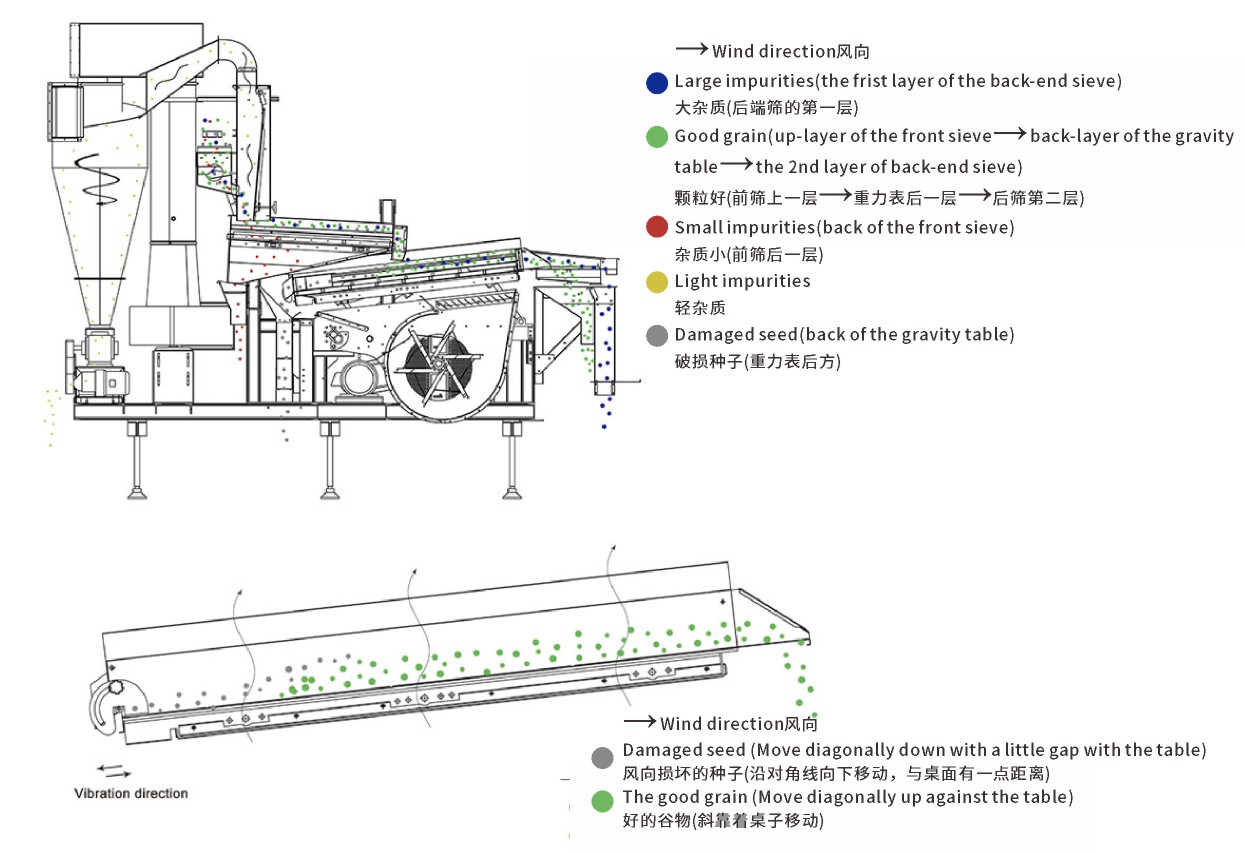

The machine is composed of elevator, vertical air screen, cyclone dust removal system, vibration classification screen, etc. It can remove dust, bran, shell and other light impurities. It can also remove the withered seeds, germinated seeds, infested seeds, rotten seeds, deteriorated seeds, moldy seeds, non viable seeds and diseased black powder seeds. After the removal of large and small impurities, the finished product can be divided into the best, medium and small particles.
Features:
1. After air cleaner and screening, the working load of gravity separation is reduced and the output and quality are further improved.
2. It can process wheat, rice, corn, soybean, sorghum and other commercial grains with a productivity of 20t / h, and can remove more
3. It is equipped with cyclone dedusting or bag dedusting, and there is no large amount of dust leakage, environmental protection and health.
4. Feeding mode: elevator, screw conveyor, belt conveyor, (optional)一。該機可代替重力分離器,減輕重力工作臺的負荷,進一步提高產量。
